    Rapid Ref : 7906010010

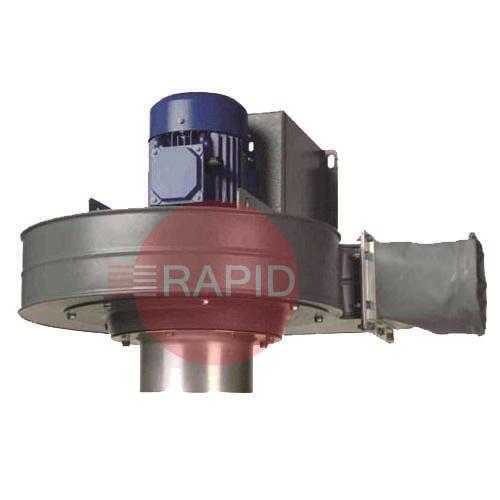

    Plymovent FAN-42 Extraction Fan 400v 3ph
    7906010010

    Select Option
    £2259.13  EX VAT
     Buy in 3 easy interest free payments of £753.04† with
    Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

    Fan 3000m³/h free-blowing; 2800 rpm, 1.5kW. Recommended in configurations of 6-8 metres or with filter unit SFD, SFS or SFE. Clockwise fan rotation.

    The FAN 42 is a wall-mounted extraction fan that provides extraction for plastic tube extraction arms:

    • Being part of a small central filter system; or
    • Connected to a 2m or 4m extension crane (with or without filtration)

    Features

    • Own mounting bracket
    • Low noise level
    • Efficient

    Recommended for
    A small welding fume extraction system for medium to high-intensity welding processes.

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure
       FAN 42 / SF 4200 User Manual

    Related Items

    UltraFlex-3 / 4 Spare Parts FAQs

    Straight answers to the questions people ask most when choosing and fitting spare parts for a flexible spring-balanced fume extraction arm.

    How do I identify the right spare for my extraction arm?icon-minus-redicon-plus-red

    Find the model on the arm's data plate or label, then use the manual's parts list and drawing. Note whether the arm is wall mounted or fitted to a mobile unit, and look at the hose diameter and the number of sections.

    Parts for different arm versions can look alike but differ in length, size or fixing. If you are unsure, our team can help you match the part.

    Why does my arm sag or fail to hold its position?icon-minus-redicon-plus-red

    Extraction arms are usually balanced by springs or similar counterbalance parts and held in place by friction in the joints. A sagging arm often points to a weakened or broken spring, a loosened joint or worn friction parts.

    Check the joint tension first, but only if the manual for your arm allows it. Whether springs should be replaced singly or together depends on how your arm is built, so follow the parts list and instructions for your own model. Support the arm before any work, because springs can hold stored force. If you are unsure, use a competent engineer.

    What are the inner tubes and why do they need replacing?icon-minus-redicon-plus-red

    The inner tubes are the rigid sections of the arm that carry the airflow and the joints. They can bend, dent or corrode from knocks, heat and age. The tube material differs between arm designs, so check the data plate and manual for your own machine rather than assuming.

    A bent tube stops the arm moving smoothly and can leak. Choose the tube listed in the parts list for your arm and for the correct position, whether that is the hood side or the wall or unit side.

    How do I know when to replace the hose pieces?icon-minus-redicon-plus-red

    Replace a hose piece if you see tears, burn marks, collapsed sections, or loose ends. Flexible hoses are often made in pieces for the hood, middle and wall ends, so you only need to replace the damaged one.

    Make sure that the replacement has the correct diameter and fittings. A damaged hose cuts suction and lets fume escape.
