    Rapid Ref : 0700003891

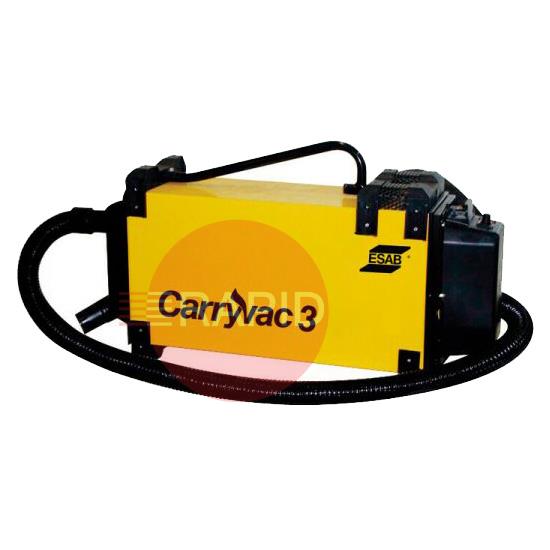

    ESAB CarryVac 3 Portable Fume Extractor - 110v
    0700003891

    £2346.00  EX VAT
    SSP Suggested Selling Price = £3350.24  YOU SAVE £1004.24
     Buy in 3 easy interest free payments of £782.00† with

    CarryVac 3 is a small, lightweight and portable fume extraction unit, and is used to maintain a healthy work environment by extracting fumes directly at the source in light-duty welding applications. Designed to be carried to the working area, it can be connected to either a fume extraction welding torch or to the extraction nozzle to extract fumes. Weld fumes are filtered and captured in a hygienically packed filter that offers complete protection from particles, keeping them isolated from welders, even when performing a filter change.

    • Nanofiber filter with extended dust holding capacity, and 99% efficiency in capturing welding fumes, ensuring compliance with the W3 standard
    • Manual and automatic start/stop function, which increases the service life of each filter and of the unit itself
    • Adjustable flow to adapt to different torches and hoods
    • Automatic flow adjustment to maintain correct airflow and suction during operations
    • Alarm notifications
    • ISO 21904 compatible for industry standards compliance
    • Suitable for fume extraction for light welding applications

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure
       ESAB CarryVac 3 Instruction Manual

    Related Items

    ESAB Fume Extractors FAQs

    Straight answers to the questions people ask most when choosing and using a portable welding fume extractor.

    What is a portable fume extractor best used for?icon-minus-redicon-plus-red

    A portable extractor is a compact unit with a fan, a filter and a flexible arm or hose that you position close to the weld. It suits small workshops, repair work, site work and jobs that move around, where a fixed system is not practical.

    It works best for light to moderate welding. For several welders working at once, or heavy continuous production, a larger fixed system is usually a better fit.

    Will the extractor disturb my shielding gas?icon-minus-redicon-plus-red

    It can, if the suction is too strong or the nozzle is too close and pointing straight at the arc. A disturbed gas shield causes porosity in the weld.

    Place the nozzle to the side and slightly behind the weld, and adjust the distance and angle until the fume is captured without blowing the gas away. Test on scrap material first if the weld quality is critical.

    How do I know when the filter needs changing?icon-minus-redicon-plus-red

    Signs include weaker suction, a warning light or indicator if the unit has one, more visible fume escaping, and a noticeable rise in the noise of the motor as airflow drops. A blocked filter reduces capture, so the unit looks as if it is working but protects you less.

    Follow the maker's guidance on checking and changing filters. Handle used filters carefully, as they contain the welding fume that has been collected, and dispose of them as the regulations for your waste require.

    Does a portable extractor remove the need for a respirator?icon-minus-redicon-plus-red

    Not automatically. Source extraction reduces your exposure, but it may not remove the hazard completely, especially in confined or awkward positions or with some materials. Whether you also need respiratory protection depends on your risk assessment, the material, the process and the fume levels.

    The HSE treats all welding fume, including mild steel fume, as a cause of lung cancer, so suitable controls must be in place and checked. Use extraction as one part of your controls, and follow the HSE guidance on welding fume.
