    Rapid Ref : 0000112MFD

    Plymovent MFD Mobile Welding Fume Extractor Package UltraFlex Arm and Disposable Filter, 415v
    0000112MFD

    Select Option
    Prices From £4031.30 ex VAT

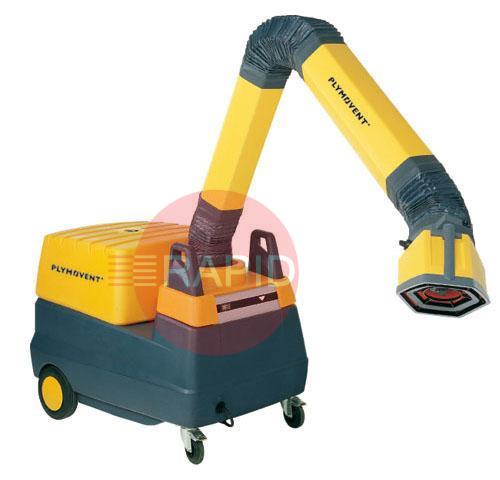

    The MFD is a mobile welding fume filter with integrated fan for regular welding applications. It contains an aluminium spark arrester and a disposable filter cartridge. A filter pollution indicator indicates when filter replacement is required.

    The ultra flexible extraction arm is fitted with a 360° rotatable hood and a throttle valve to control the airflow at the hood opening.

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Mobile / Portable Solutions FAQs

    Straight answers to the questions people ask most when choosing and using mobile and portable welding fume extractors.

    When is a mobile or portable fume extractor the right choice?icon-minus-redicon-plus-red

    A mobile or portable extractor suits work that moves around: repairs, site and maintenance jobs, short production runs, or a workshop where welding happens in several places. You wheel it or carry it to the job and capture the fume at the source, with no ductwork to install.

    For a fixed welding bay where the same work is done all day, every day, a stationary or centralised system is often the better fit. A mobile unit can still be useful there as a second, flexible option.

    What is the difference between a mobile unit with an extraction arm and a fume extraction torch?icon-minus-redicon-plus-red

    A mobile unit with an extraction arm has a hose or arm that you position close to the weld. It captures fume from a range of processes, but it must be repositioned as you move along the joint.

    A fume extraction torch has the suction built into the torch itself, so the capture point travels with the arc. It is very effective for MIG welding but only works with that torch and process. Some buyers use an arm for general work and a fume torch for long or awkward welds.

    How do I know when the filter needs changing?icon-minus-redicon-plus-red

    Most mobile extractors show it in one of several ways: a drop in suction, a warning light or gauge that indicates a blocked filter, or a rise in noise as the motor works harder. Fume seen escaping from the nozzle more than before is another sign.

    Follow the maker's service interval and warning indicators rather than waiting for failure. A blocked filter reduces capture, strains the motor and means you are breathing more fume. Wear suitable gloves and respiratory protection when changing filters, and dispose of used ones as the manufacturer advises.

    Do I still need respiratory protection if I use a mobile extractor?icon-minus-redicon-plus-red

    Often yes. Source extraction greatly reduces the fume in your breathing zone, but it rarely captures everything, and capture depends on correct positioning. For some materials, such as stainless steel, or for work in confined spaces, extra protection such as a suitable respirator or air-fed helmet may be needed.

    Your employer's risk assessment, based on the material, process and ventilation, decides what is required. The HSE gives guidance on welding fume control. Treat extraction as one layer of control rather than the only one.
