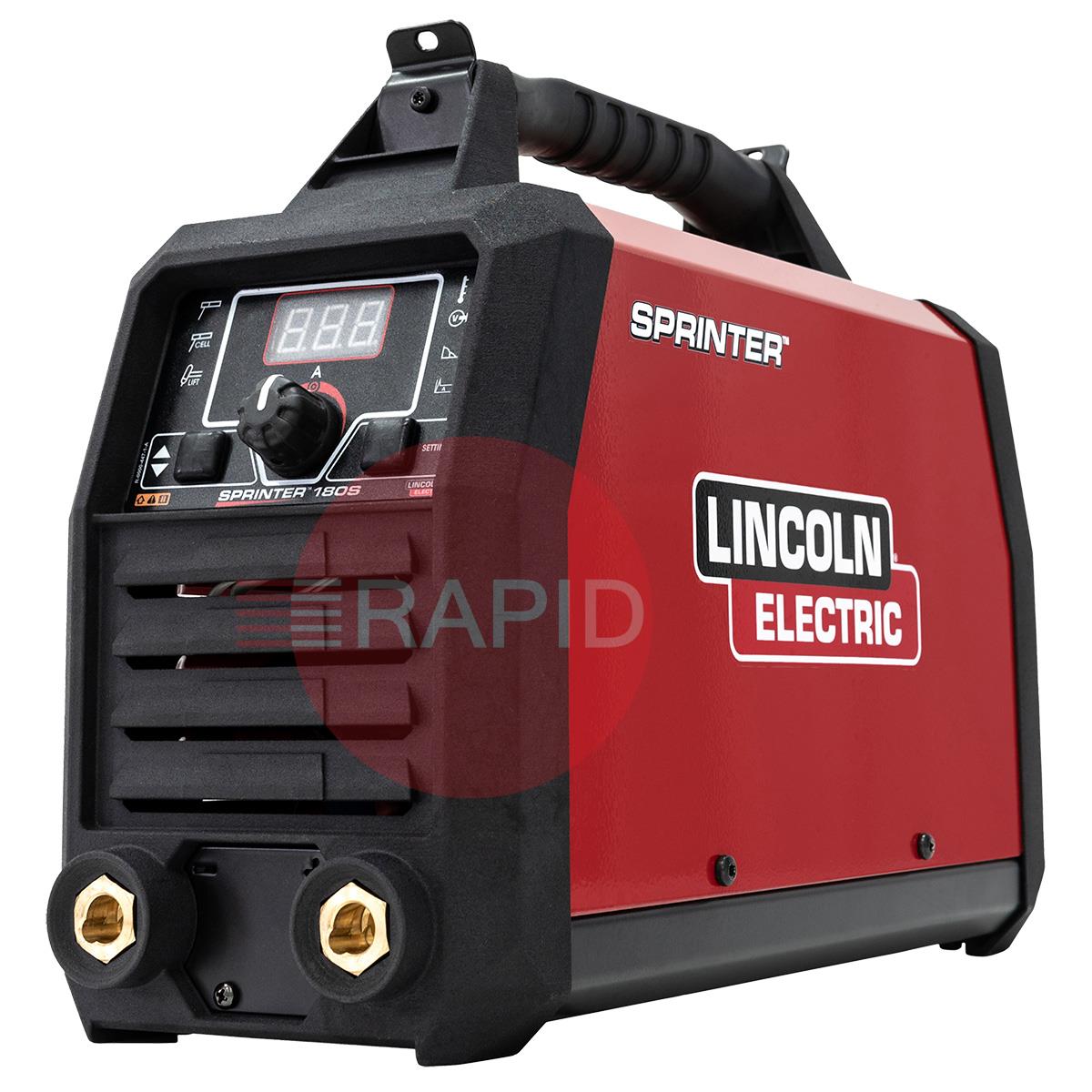

This machine is more than just a stick welder; the Sprinter S combines superior stick functionality with DC LIFT TIG mode and dual input voltage (120V/230V). A simple display allows you to select welding settings quickly, with the ability to start any job anywhere, whether it’s maintenance work, light fabrication, light construction and everything in between.
Specification
Straight answers to the questions people ask most when choosing and using a 110 volt arc welder.
On many construction and industrial sites, portable electrical equipment is required to run from a reduced 110 volt supply, because it lowers the risk of a serious shock if a cable or tool is damaged. A welder that runs from 110 volts can be connected to the site supply or to a suitable generator.Check your site rules, because requirements vary, and follow the instructions of the person in charge of site electrical safety.
A dual voltage or multi-voltage welder detects or is set to accept either a 110 volt or a 230 volt supply, so one machine works on site and in the workshop. Many are inverters that adjust internally.The welding current you can use is normally lower on the lower voltage, so read the data plate and manual for the output at each input. Always use the correct plug and supply for the voltage in use, and never try to fit a different plug that does not match the supply rating.
Site 110 volt equipment normally uses a yellow industrial plug and socket, usually at a particular current rating. The supply must be able to provide the current the welder draws, and the plug and cable must be rated for it.A welder drawing more current than the supply or plug is rated for will trip protective devices or overheat the cable. Check the current draw on the welder's data plate and make sure the supply, transformer or generator can provide it.
Often yes, but the transformer or generator must be big enough for the current the welder draws, with enough capacity left for other equipment connected at the same time. An undersized supply makes the arc unstable and can cause cut-outs.For generators, check the output rating covers the welder's input requirement, and ask whether the generator suits inverter equipment. Follow the generator and welder manufacturers' guidance and any site rules.
