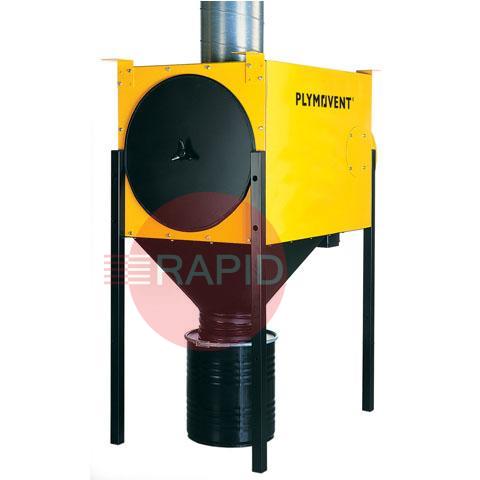

Plymovent SmartOne Stationary Welding Fume Filter Unit with Self-Cleaning Filter
0000101749

Name: Plymovent SmartOne Stationary Welding Fume Filter Unit with Self-Cleaning Filter
SKU: 0000101749
Price: 3558.00 GBP

£3558.00 EX VAT

Buy in 3 easy interest free payments of £1186.00^† with

Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

Stand-alone filter for welding fume and dust collection

The SmartOne is a dry dust and smoke collector with a self-cleaning filter. The unit comes with filter monitoring system. The filter can be manually cleaned at any time. Clear and simple instructions on the filter housing lid and a simple handle make filter change easy and convenient. The filter can be used in extraction systems with air volumes up to 1400m3/h.

Features

Multiple mounting options
Pressure-controlled automatic self-cleaning
Integrated soft touch operating system
Efficient filtration of dust and fumes
Low cost of ownership

Recommended for
Medium to medium-heavy applications such as professional manual welding or intermittent semi-automatic and robotic welding.

Brochures, Manuals & Videos

BROCHURES & MANUALS

View Brochure

SmartOne User Manual

Videos

Multiple arm system optimal protection and energy efficient

Plymovent Stationary Filter Units FAQs

Straight answers to the questions people ask most when choosing and running stationary welding fume filter units.

What is a stationary filter unit and where is it used?

A stationary filter unit is a fixed fan and filter assembly that draws contaminated air from one or more extraction points, cleans it and either returns it to the workshop or discharges it. Sizes range from small units serving a single arm to central systems serving a whole workshop.

They suit permanent welding stations, production lines, cutting tables and general fume and dust control.

What are the main filter types, and how do they differ?

Most welding fume units use a filter material, often pleated cartridges, to trap particles. Some are replaced when full, while others clean themselves in place with pulses of compressed air that knock dust into a collector. Other designs charge particles and collect them on plates that must be washed or wiped clean.

The right choice depends on the fume, how many hours the unit runs each day and the maintenance you can carry out. Check the data plate and manual of the unit you are considering for the filter type, the cleaning method and the service interval.

Single-arm units, multi-arm units or a central system - which should I choose?

A single unit with its own arm is simple and good for one station. Several arms on one unit work if the stations share a space and are not all used at once. A central system with ducting suits many stations and gives one place to maintain the filter.

Central systems need more design work and ducting, and their balance matters, but they can be easier to look after in a large workshop.

What electrical and compressed air connections are needed?

Larger units normally need a three-phase supply, while smaller ones may run from single phase. Self-cleaning types need a supply of clean, dry compressed air at a stated pressure, unless the unit has its own compressor.

The data plate and manual list the requirements. Electrical connection and air connections should be made by competent people, and the fan rotation should be checked at commissioning.

See all 6 questions for this category
