  • 9824000220  Plymovent FlowGuard Airflow Sensor for Extraction Arm
  • 9824000220  Plymovent FlowGuard Airflow Sensor for Extraction Arm
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : 9824000220

Plymovent FlowGuard Airflow Sensor for Extraction Arm
9824000220

£246.96  EX VAT
 Buy in 3 easy interest free payments of £82.32† with

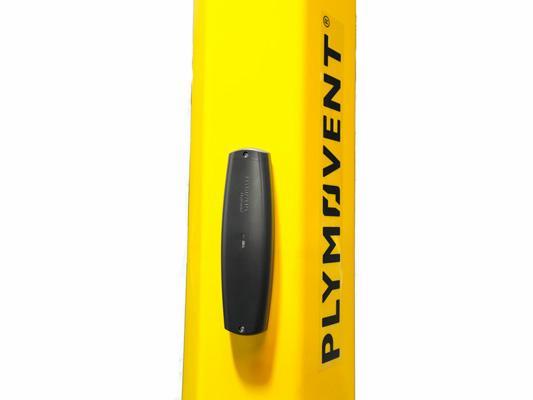

FlowGuard is a sensor to check and indicate whether the airflow in your welding fume extraction system is adequate. FlowGuard can be mounted on an extraction arm, but also suits any other extraction device.

Health and Safety Regulations such as the British Health and Safety Executive HSG 258 guideline ‘controlling airborne contaminants at work’ require, among other things, that users of welding fume extraction systems have the right to know if they are using proper extraction equipment.

High-quality extraction systems ensure that welding fumes do not reach the welder’s breathing zone. FlowGuard indicates if the present airflow in your extraction system is strong enough. A green LED indicates whether the airflow is OK and a red LED indicates if the airflow dropped below the set values.

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FlowGuard Instructions

Related Items

UltraFlex-3 / 4 Spare Parts FAQs

Straight answers to the questions people ask most when choosing and fitting spare parts for a flexible spring-balanced fume extraction arm.

How do I identify the right spare for my extraction arm?icon-minus-redicon-plus-red

Find the model on the arm's data plate or label, then use the manual's parts list and drawing. Note whether the arm is wall mounted or fitted to a mobile unit, and look at the hose diameter and the number of sections.

Parts for different arm versions can look alike but differ in length, size or fixing. If you are unsure, our team can help you match the part.

Should I replace springs singly or together?icon-minus-redicon-plus-red

Check the manual and parts list for your own arm, as the right approach depends on the design. Some arms use matched springs that share the load, and fitting a new spring beside an old, tired one can leave the balance uneven so the arm tilts or drifts. Others are designed for single replacement.

If the manual does not say, ask our team or the maker's service department before you start. Springs hold stored force, so support the arm, wear eye protection and gloves, and follow the manual's steps. If you are not confident, use a competent engineer.

What are the inner tubes and why do they need replacing?icon-minus-redicon-plus-red

The inner tubes are the rigid sections of the arm that carry the airflow and the joints. They can bend, dent or corrode from knocks, heat and age. The tube material differs between arm designs, so check the data plate and manual for your own machine rather than assuming.

A bent tube stops the arm moving smoothly and can leak. Choose the tube listed in the parts list for your arm and for the correct position, whether that is the hood side or the wall or unit side.

How do I choose between a hood-side part and a wall or unit-side part?icon-minus-redicon-plus-red

Many spares come in two versions, one for the hood end and one for the wall or unit end, because the loads and fittings differ. Springs, hoses and tubes at the two ends are not usually interchangeable.

Check which end the part belongs to, using the drawing, and make sure it is listed for your arm.
