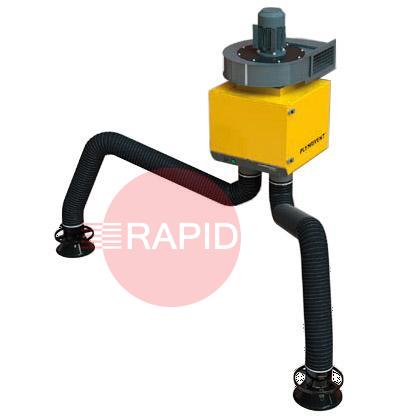

The DualGo is a stationary welding fume filter with integrated fan and two hose tube arms (EconomyArm). It contains a disposable filter package. The DualGo has been designed for occasional to regular welding activities (approximately 1 coil of solid wire or 7.5Kg /16.5lbs of electrodes per workplace per month) and TIG welding.
Straight answers to the questions people ask most when choosing and running stationary welding fume filter units.
Most welding fume units use a filter material, often pleated cartridges, to trap particles. Some are replaced when full, while others clean themselves in place with pulses of compressed air that knock dust into a collector. Other designs charge particles and collect them on plates that must be washed or wiped clean.The right choice depends on the fume, how many hours the unit runs each day and the maintenance you can carry out. Check the data plate and manual of the unit you are considering for the filter type, the cleaning method and the service interval.
A single unit with its own arm is simple and good for one station. Several arms on one unit work if the stations share a space and are not all used at once. A central system with ducting suits many stations and gives one place to maintain the filter.Central systems need more design work and ducting, and their balance matters, but they can be easier to look after in a large workshop.
Often yes, if the filter is rated for the fume and the process does not give off hazardous gases or vapours the filter cannot remove. Returning air saves heating energy and avoids drawing cold air in through the building.Check the manufacturer's guidance and your risk assessment. Stainless steel, coated materials and some consumables need extra care, and some applications require discharge to the outside instead.
Larger units normally need a three-phase supply, while smaller ones may run from single phase. Self-cleaning types need a supply of clean, dry compressed air at a stated pressure, unless the unit has its own compressor.The data plate and manual list the requirements. Electrical connection and air connections should be made by competent people, and the fan rotation should be checked at commissioning.
